20ft Open Side Container Conversion

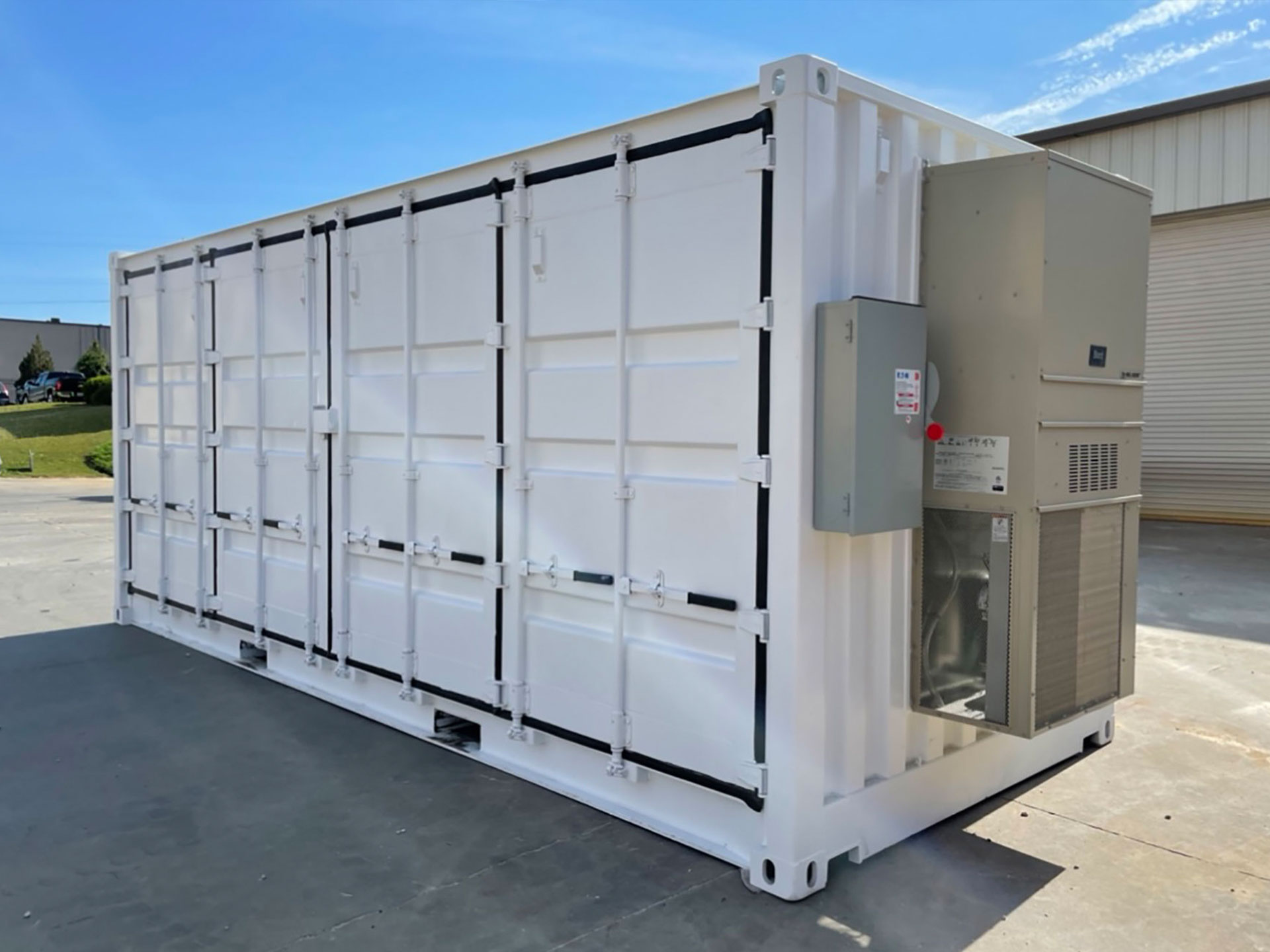

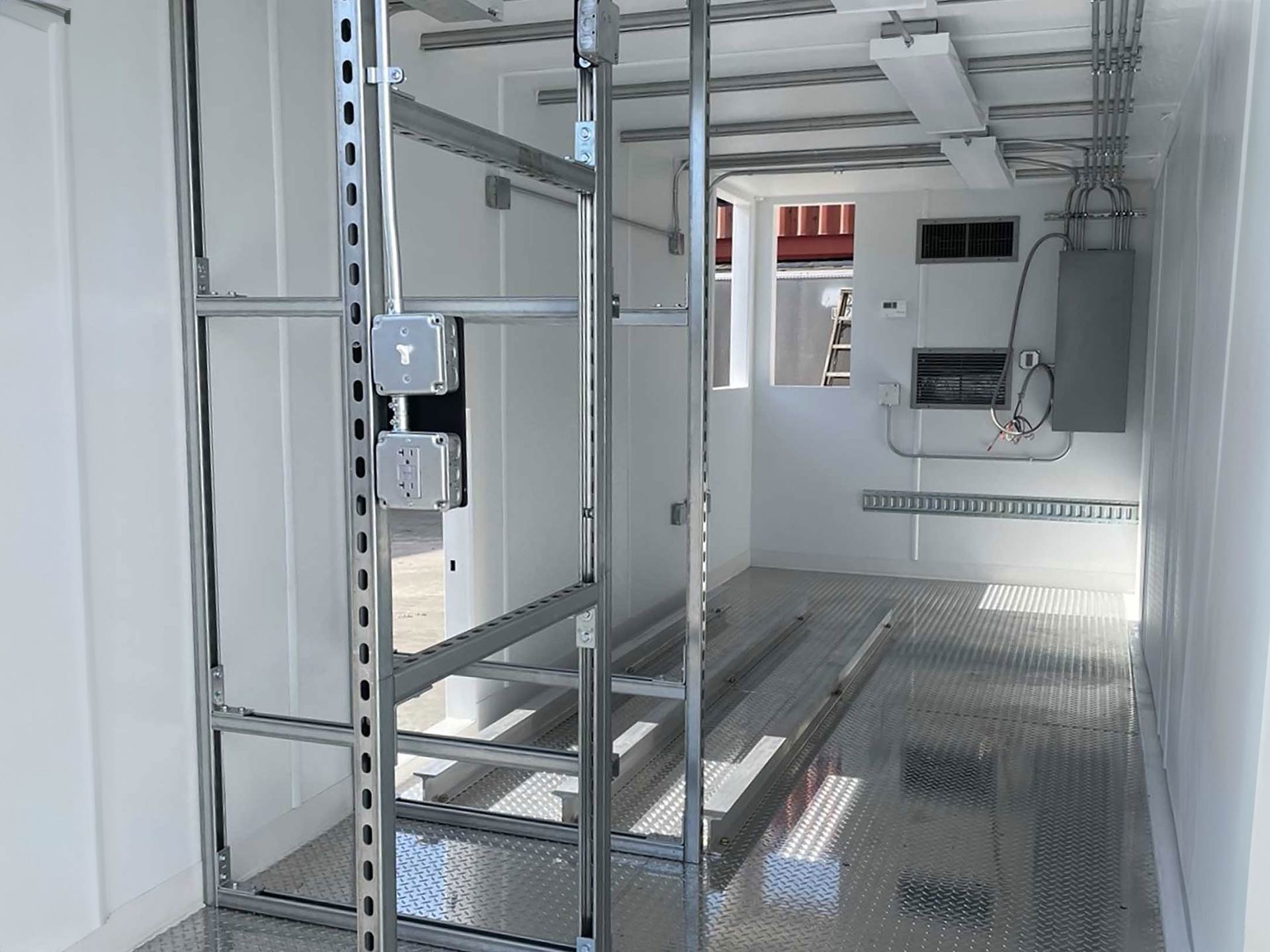

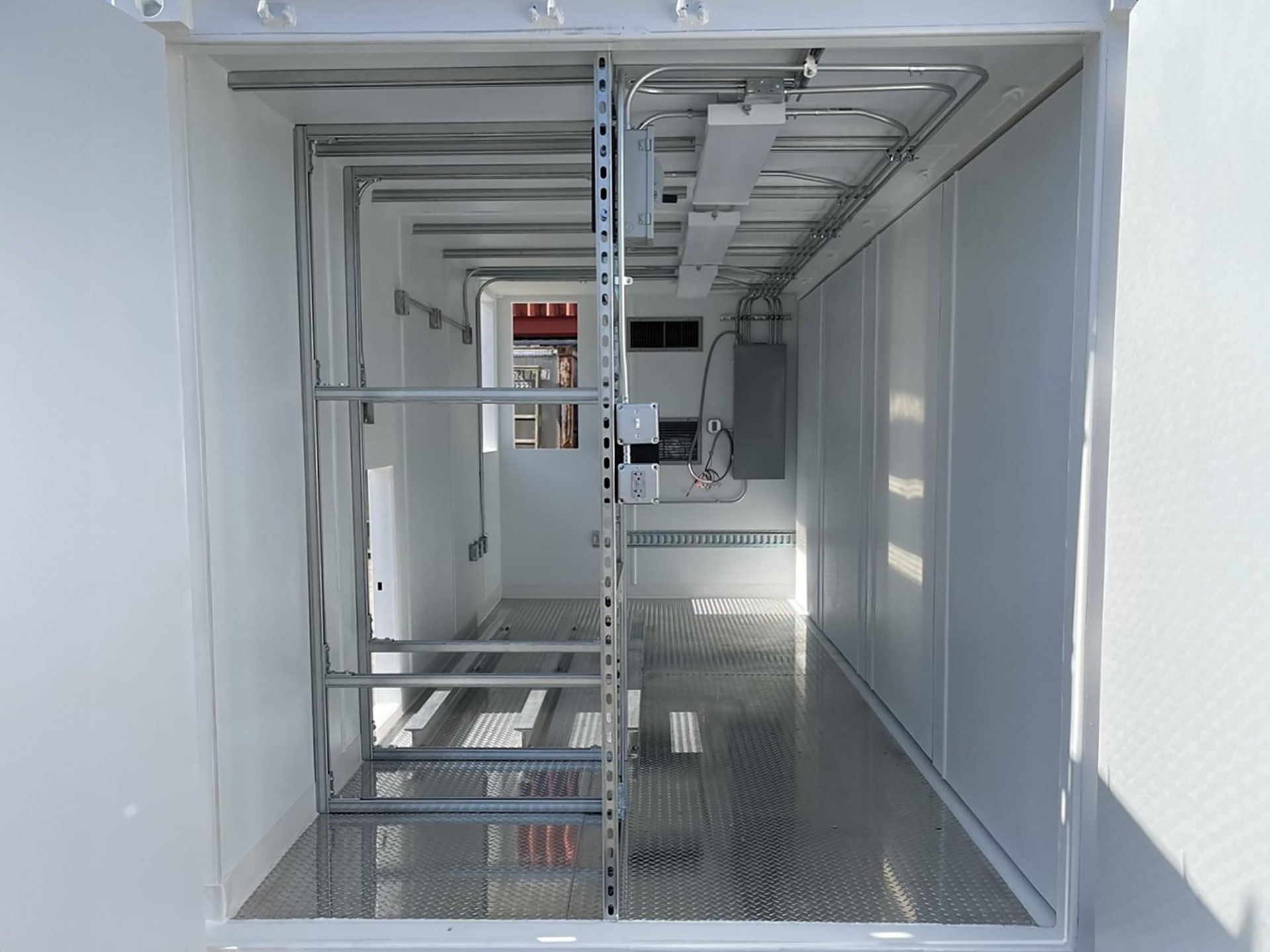

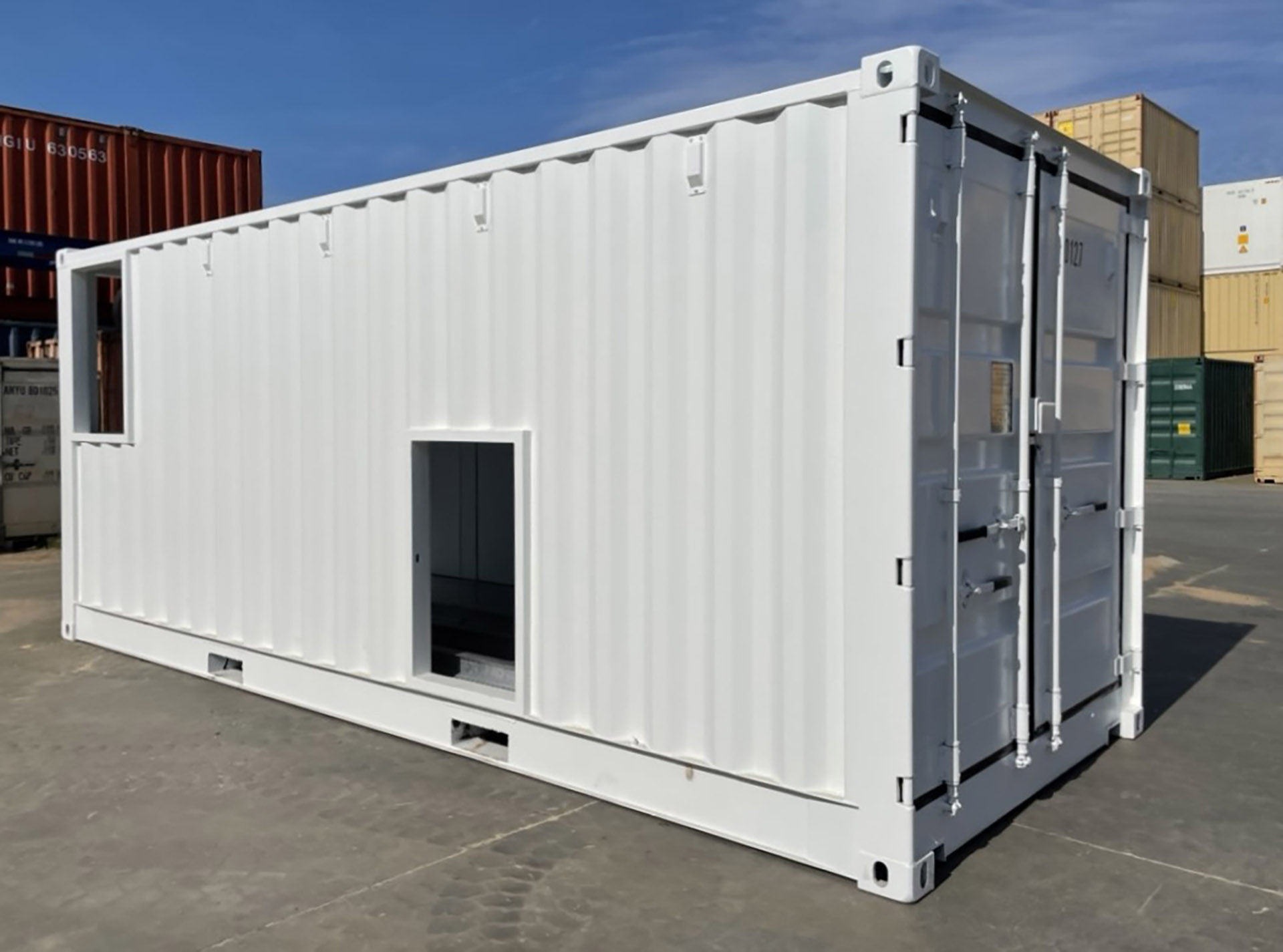

20ft Open Side shipping container converted into mobile equipment testing lab. The interior of the container is finished and equipped with electrical, lighting, outlets, and HVAC. An aluminum diamond tread overlay was installed over the wood floor. Several runs of aluminum Unistrut were installed along sidewalls and ceiling of container and the exterior was painted white.







Modifications Include
- Interior framed with 2” x 2” steel tubing (run horizontally), 2” closed cell spray foam insulation and walls lined with 3/8” plywood FRP (fiberglass reinforced plastic) panels
- (3) 4’ LED lights w/ switch, (2) 120V duplex outlets, (3) 220V single phase outlets, (5) 208V 3-phase outlets, wiring run in surface mounted conduit back to 200-amp breaker to exterior disconnect c/w 240V NEMA 3 safety switch (per customer specifications)
- 3/16” Aluminum diamond tread installed over existing wood floor

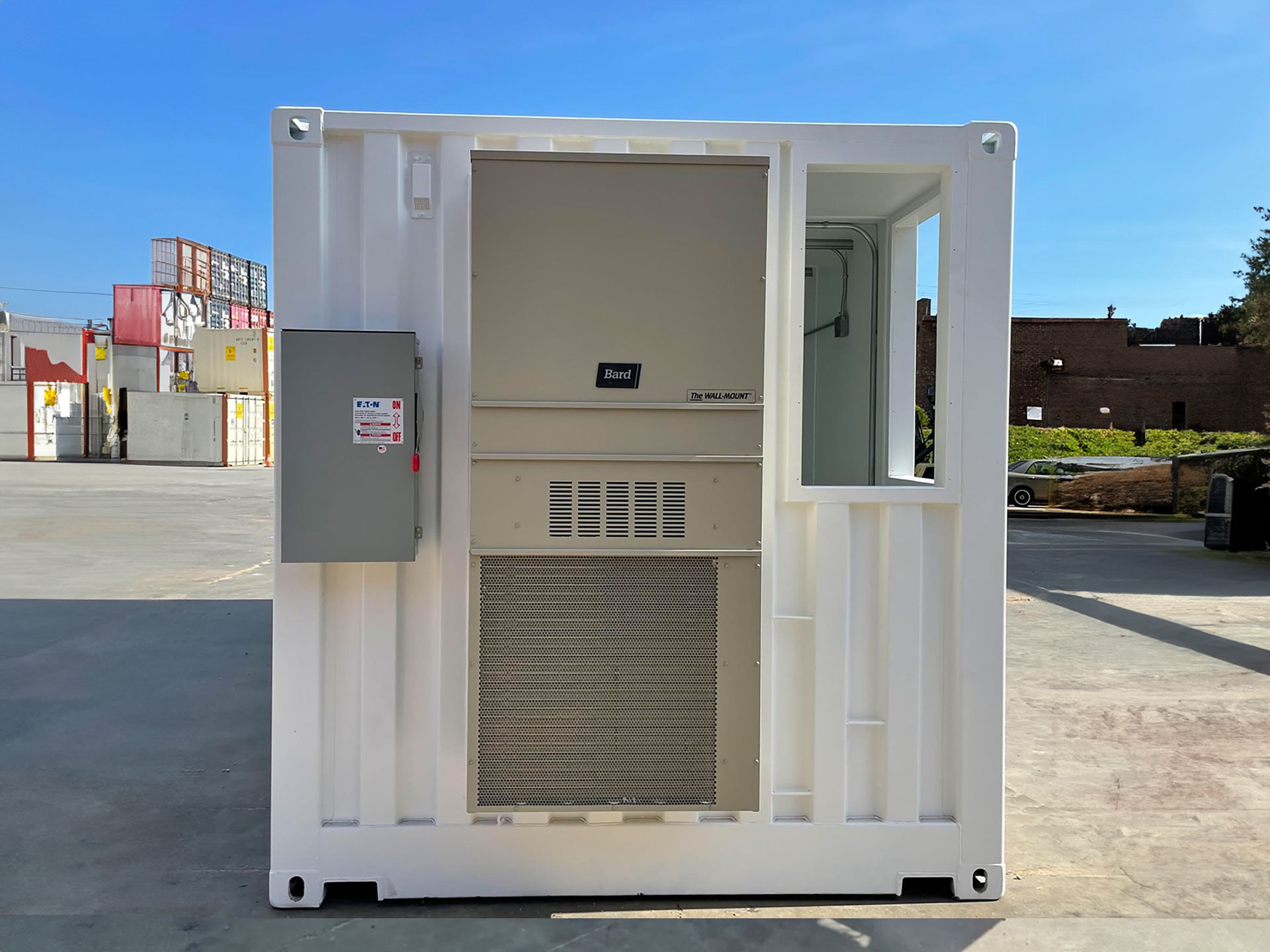

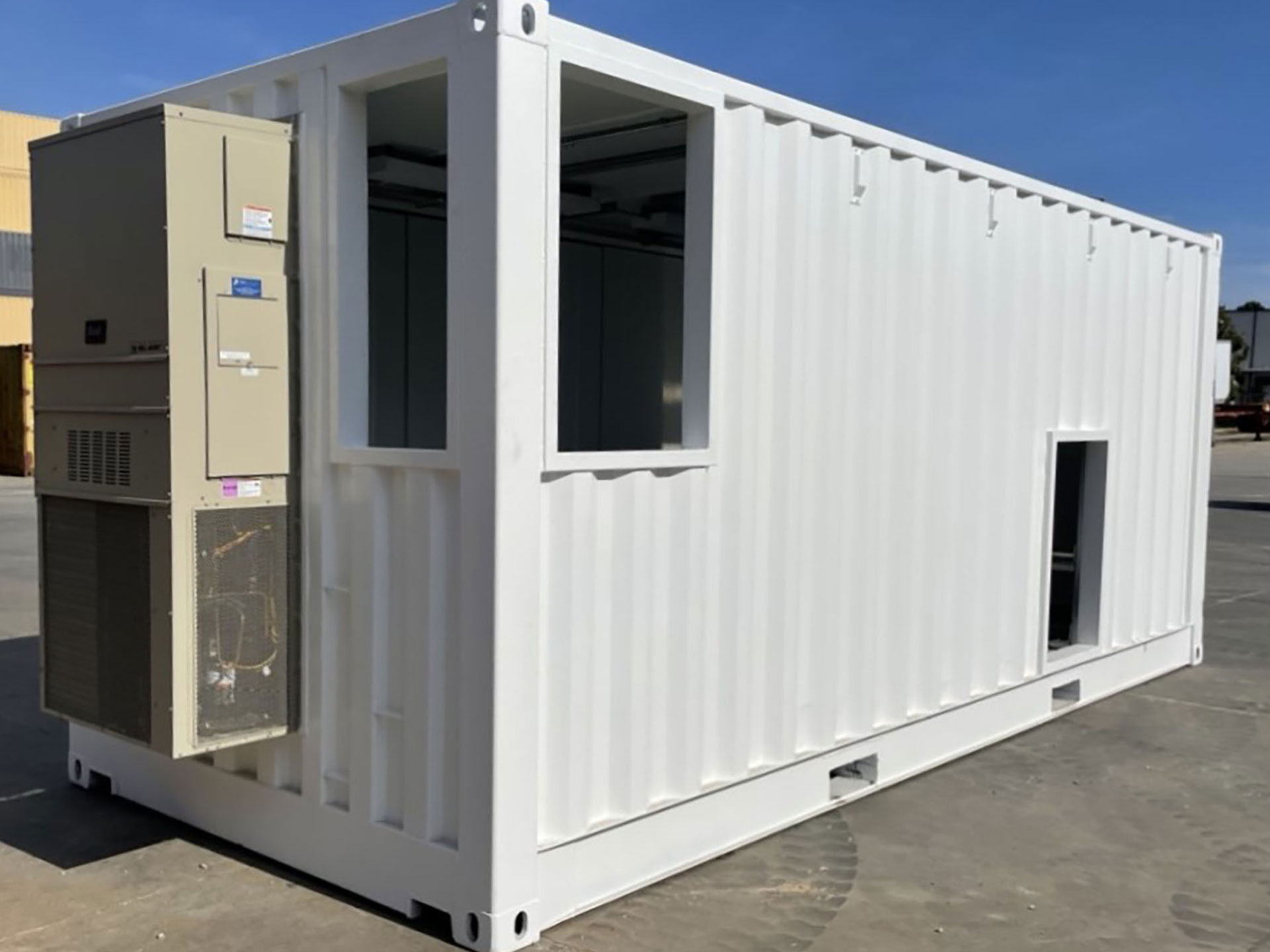

- 2-Ton Bard™ Commercial HVAC
- Aluminum Unistrut throughout
- Exterior primed/painted white
